Ratio Connex 302 Plus

Design Fabrizio Crisà

A super compact induction hob distinguished by its clean lines and minimalist aesthetic. Total black glass, subtle serigraphs, slider control. Easy-to-use functions and connection with the hood.

Colorblack
Width

Ratio Connex 302 Plus

Design Fabrizio Crisà
A super compact induction hob distinguished by its clean lines and minimalist aesthetic. Total black glass, subtle serigraphs, slider control. Easy-to-use functions and connection with the hood.

Ergonomic and connected. In 30 cm.

This 2-zone induction hob is designed to fit into very small spaces or to complement other hobs. It comes with a function to bridge two zones, ensuring uniform power and temperature, even when using larger cookware. The intuitive touch slider control gives you full control over all settings and functions of the hob. Warming, for instance, is a function designed for slow cooking, heating up milk and soup, preparing custards and sauces without overheating, and for keeping ready-made food warm. The hob synchs with Elica hoods via Bluetooth to automatically adjust the light and extraction rate based on the cooking zones in use.

Stop&Go

Everything stops, everything starts again. Just with a gesture of your finger.
Need to move away from the kitchen while you are cooking? Just by a gesture, put all the functions activated on standby. All you need to do is just press a key to start them again with previous settings.

Child Lock

Children always safe and protected.
No worries! This function prevents the accidental switching on of cooking zones or extraction areas.

Timer

Switches off everything on its own.
All you need to do is set the minutes and the countdown starts. At the end, it will automatically switch the cooking zone off, emitting a sound signal. Just press the ‘touch’ control and independent timers will activate in more zones at the same time.

Warming Mode

Slow cooking, delicious results.
Conceived for slower cooking preparations, ideal when warming up milk or broths, for the preparation of custards or sauces preventing them to overheat and keeping your prepared food warm.

Technical Specifications

Finishing
Black glass

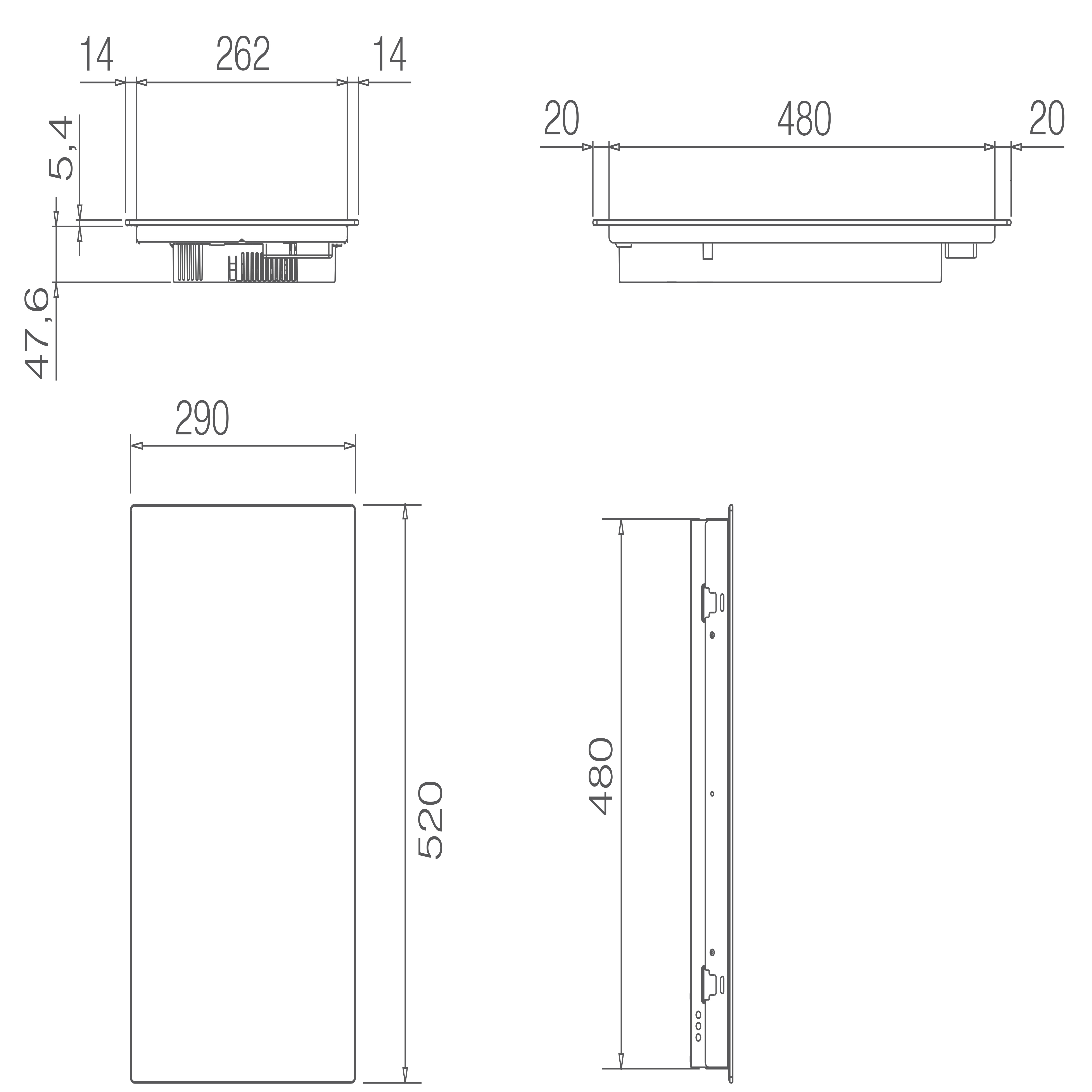

Dimensions (cm)
29x52x5

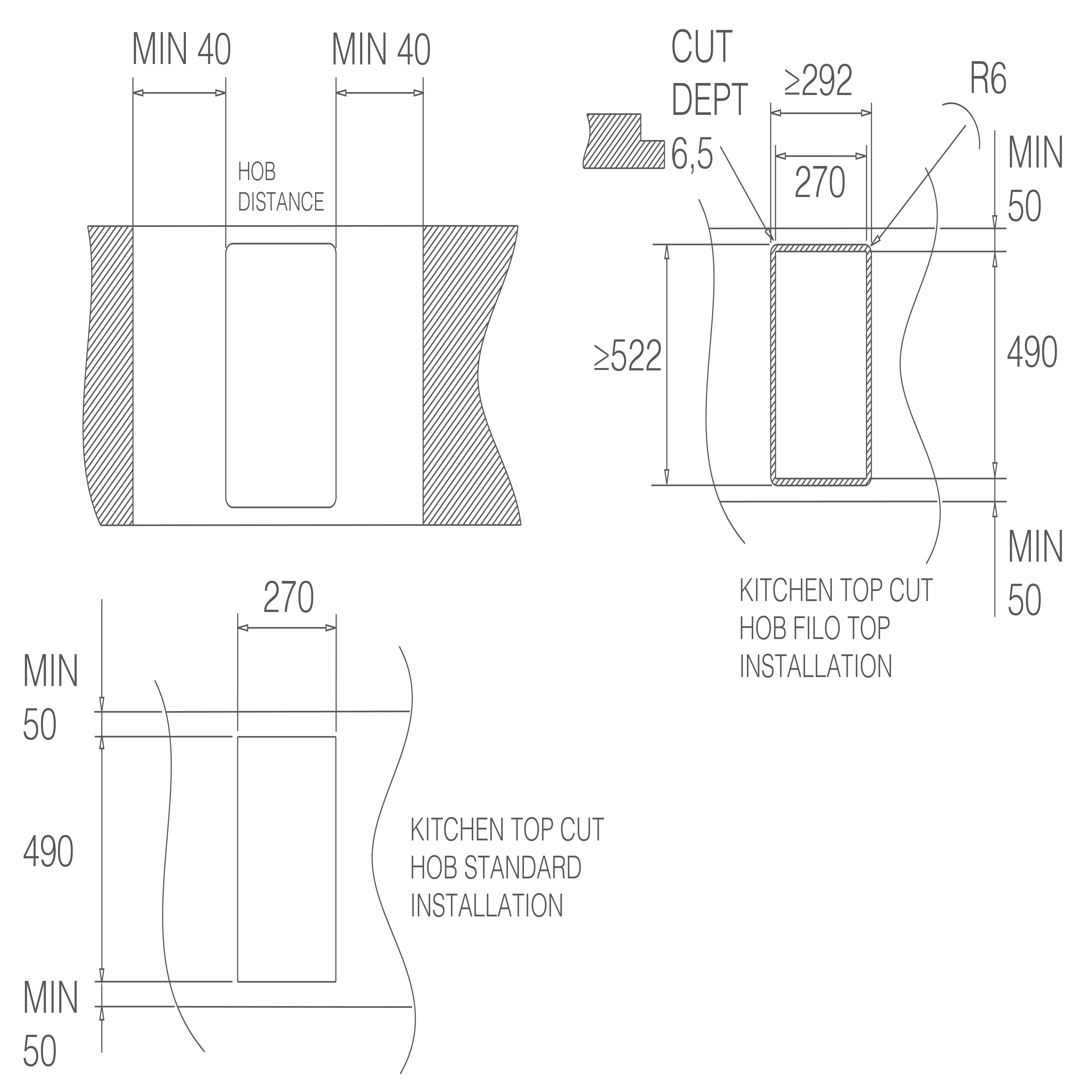

Cut out
27x49 cm
Absorption
3700W
Total absorption
7,2 kW

Controls
9P+B slider touch control
Voltage
220-240V
Power limitation
3,1kW
Number of bridge zones
1 - SX
Front left cooking zone
OCTA 21x19,1 cm - 2,1/3 kW
Rear left cooking zone
OCTA 21x19,1 cm - 2,1/3 kW

Downloads


Technical documentation will soon be available for download.
