Boxin Dry
Design Fabrizio Crisà
Boxin Dry is the new Elica solution created to best resolve and prevent the problem of condensation droplets, allowing to protect kitchen wall units by excessive cooking vapors.
Color: Stainless steel
Width
Boxin Dry
Design Fabrizio Crisà
Boxin Dry is the new Elica solution created to best resolve and prevent the problem of condensation droplets, allowing to protect kitchen wall units by excessive cooking vapors.
Boxin Dry

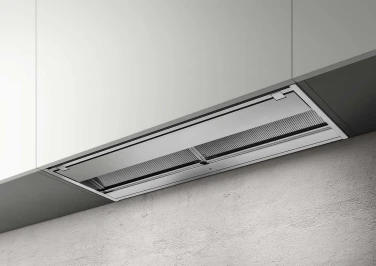

Completely flush with the kitchen cabinets, the hood is totally hidden and integrated, thus giving the kitchen a continuous, linear look. Furthermore, the hood body was designed to provide useable shelf space within the cabinet to store objects and utensils. Great attention to detail has been paid to this highly efficient product: thanks to the «No Drip» system, the hood will prevent condensation formation, thus avoiding dripping onto the hob or food, by collecting it into a specific tray. The extraction area has tilted stainless steel grease filters, with a customized, patented design that makes the collection of condensation droplets easier. Furthermore, Boxin Dry is equipped with a specific visor with an integrated control, which can open from the front to protect the cabinet door from excess vapor formation, thus guaranteeing perfect ergonomics in terms of functionality. The appliance is also equipped with side protections, for 360° defense.
Airmatic
Clean air, healthy air. Automatically.
A sensor tests air-quality at any moment of the day. If it detects vapours, even polluting vapours (like solvents or cigarette smoke), the hood will switch on and adjust extraction power automatically. And will switch off once the air is clean again.
Cabinet Protection
Protected wall units, the perfect kitchen.
A special design that ensures total protection of your wall units from cooking vapours. The side protections together with the ergonomic front visor will prevent any potential wear-out.
Long Life Filter
Odour filters, durability.
Our easy to maintain odour filters, are now even more green: washable and regenerable, with a durability up to 3 years (as compared to -3/6 months of average filters on the market).
Maintenance Alarm
Filters KO’d? You’ll be informed.
A warning light will switch on to signal out to you that grease filters and odour filters have reached their maximum saturation point. It’s time for you to wash or replace them.
No Drip System
Total Integration
Tune White
Easy Maintenance
Technical Specifications
Weight (Kg)
11,5kg
Finishing
Stainless Steel
Dimensions (cm)
90cm
Energy Class
B
Minimum distance from wall unit induction/radiant surface
50cm
Minimum distance from wall unit gas hob
50cm
Duct Transition
150mm
Lighting
Led 2x2.1 W - 3500 K - 181 LUX
Absorption
255W
Venting Type
Duct-out
Airflow Min-Max
270m³/h - 700m³/h
Noise level min-max
52db(A) - 67db(A)
Controls
3S+B Electronic push button
